Power Quality Engineering
Harmonic Mitigation and Reactive Power Solutions
Helping Energy
Projects achieve
Clarity and Resilience
ENERZIX's engineering expertise delivers maximum impact when applied to convert intricate electrical network challenges into stable, resilient, and efficient power systems.
ENERZIX supports energy-intensive industries and infrastructure operators with advanced power quality engineering solutions that improve reliability, efficiency, and long-term operational stability. Our expertise in power factor correction, harmonic mitigation, and power system studies helps de-risk operations and address power quality challenges across heavy industry, utilities, and grid-connected assets.
Through our power quality engineering services, we enable reliable power systems, improve energy efficiency, and support industrial facilities in maintaining stable and compliant electrical networks.
ENERZIX delivers the following outcomes:
Power Quality and Harmonic
Mitigation Engineering
Power quality issues such as harmonic distortion, voltage imbalance, reactive power fluctuations, and poor power factor can affect the reliability and efficiency of electrical networks across industrial facilities, renewable energy plants, and grid-connected infrastructure.
ENERZIX provides power quality engineering and mitigation solutions designed to improve electrical network performance and support compliance with utility and grid requirements.
Our team supports the engineering and integration of harmonic filter systems, Static Var Generators (SVG), and reactive power compensation technologies tailored to the characteristics and operating conditions of each electrical network.
Guided by our principle of Engineering for Clarity, ENERZIX focuses on developing technically balanced and reliable solutions that address power quality challenges while ensuring stable system operation.
of unexplained downtime is associated with power quality problems

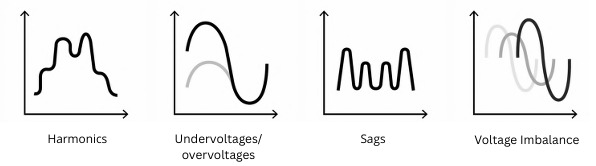

Key contributors to
power quality disturbances:
ENGINEERING CAPABILITY
AND POWER QUALITY APPROACH
Power quality challenges cannot be resolved through equipment selection alone. They require a structured engineering approach that identifies root causes, evaluates system interactions, and delivers solutions that are compliant, stable, and reliable throughout the operating life of the network.
Detect
Analyze system data and network performance to pinpoint disturbance sources and operating conditions.
Diagnose
Evaluate harmonics, reactive power, and voltage stability to prevent resonance and overcompensation risks.
Correct
Engineer and size mitigation systems accurately for lasting technical and operational reliability.
Sustain
Design for grid code compliance and verify real-world performance for continuous stability and adaptability.
HARMONIC MITIGATION SOLUTIONS
Passive Harmonic Filters (PHFs)
Provide fixed-frequency mitigation using tuned inductors and capacitors to divert specific harmonic orders from predictable nonlinear loads.
Key Features:
- Fixed-frequency mitigation for specific harmonic orders
- Proven reliability with no active electronics
- Lower initial cost than active solutions
- Can provide partial reactive power support
- Suitable for continuous industrial processes
Ideal Applications:
- Large rectifier loads
- Base-load industrial processes
- Legacy installations with minimal load variation
- Predictable harmonic patterns
- Cost-sensitive projects
Active Harmonic Filters (AHF)
Continuously monitor electrical currents and actively cancel harmonic distortion generated by nonlinear loads.
Key Features:
- Active cancellation of harmonic distortion
- Rapid response to load fluctuations
- Protects sensitive electronic equipment
- SCADA integration capability
- Improves overall system stability
Recommended for:
- Variable speed drives (VFDs)
- Rectifiers & converters
- Welding machines
- Automation systems
- Renewable energy inverters
Static VAR Generators (SVGs)
Static VAR Generators provide fast, precise reactive power compensation and advanced power quality management across industrial, utility, and infrastructure applications.
Key Features:
- Combined passive & active technology
- Optimal performance across varying loads
- Smaller footprint than separate systems
- Reduced active power rating requirements
- Cost-effective for complex harmonic profiles
Ideal Applications:
- Industrial & Utilities
- Renewable & Infrastructure Networks
- Large commercial buildings with VFDs
- Water treatment facilities
- Upgrading existing passive filter systems
ENGINEERING-LED RISK REDUCTION
FOR PROCUREMENT AND FINANCE
Power quality solutions impact technical performance, procurement decisions, financial approvals, and long-term operational risk. At ENERZIX, we go beyond engineering design to deliver solutions that are clearly defined, commercially transparent, and financially justified.
FOR PROCUREMENT TEAMS
- Clearly defined technical scope based on studies and measurements
- Correct sizing aligned with actual network conditions
- Evaluation beyond equipment price, focused on performance and compliance
- Reduced risk of variations, rework, and post-award changes
- Technology and vendor selection aligned with project and grid requirements
FOR FINANCE & MANAGEMENT
- Reduced risk and stronger lifecycle value
- Optimized CAPEX and OPEX through engineered solutions
- Avoidance of grid non-compliance penalties and operational disruptions
- Improved reliability under dynamic loads and future expansion
- Reduced downtime, equipment stress, and maintenance exposure
- Investment decisions supported by total lifecycle value assessment
POWER QUALITY
System integration
Successful power quality solutions require integration with electrical networks, protection systems, and substation infrastructure.
ENERZIX provides:
- System configuration engineering
- Equipment layout planning
- Electrical integration and commissioning support
This ensures stable, compliant, and long-term reliable network operation.
Through our Power Quality engineering,
we deliver value to stakeholders
Reliable and resilient power systems
Strengthen grid stability and ensure uninterrupted operations across critical industries
Energy efficiency and loss reduction
Optimize power factor performance and reduce operational costs through efficient energy usage
Grid compliance and operational stability
Ensure regulatory compliance and maintain stable operations under dynamic load conditions
POWER QUALITY SOLUTION
SELECTION GUIDE
Selecting the appropriate power quality solution requires understanding the specific challenges and operational conditions. This comparison guide helps identify the most suitable technology for different scenarios.
| Power Quality Issue | Static VAR Generator (SVG) | Active Harmonic Filter (AHF) | Passive Harmonic Filter (PHF) |
|---|---|---|---|
| Voltage Instability & Fluctuations Unstable voltage affecting equipment performance |
Excellent Fast dynamic reactive power compensation with instant voltage stabilization. |
Medium Can assist if combined with reactive power control, but primary focus is harmonics. |
Limited Only improves power factor with slow response to voltage fluctuations. |
| Low / Leading Power Factor Inefficient energy usage and utility penalties |
Excellent Continuous reactive power correction with real-time adjustment capability. |
Good Can improve power factor while mitigating harmonics simultaneously. |
Limited Corrects power factor at specific frequencies only, less flexible. |
| Harmonic Distortion From VFDs, converters, and nonlinear loads |
Limited Primary focus on reactive power; limited harmonic mitigation capability. |
Excellent Actively eliminates harmonics across multiple orders with adaptive filtering. |
Good Filters specific harmonic orders effectively for stable, predictable loads. |
| Variable Industrial Loads Motors, furnaces, cranes with rapid changes |
Excellent Handles fast load variations dynamically and prevents voltage dips. |
Good Can manage reactive power and harmonics but response slightly slower than SVG. |
Limited Ineffective for rapidly changing loads; best for stable operating conditions. |
| Sensitive Equipment Protection PLC, UPS, control systems requiring clean power |
Excellent Protects from voltage swings and stabilizes reactive power. |
Excellent Reduces harmonic stress and improves waveform quality. |
Medium May not fully protect against harmonics; risk of resonance issues. |
| Large Base-Load Applications Rectifiers, legacy installations with stable loads |
Good Stabilizes voltage and reactive power for consistent operation. |
Good Effective if harmonics are present; optional reactive control capability. |
Excellent Well-suited for known, stable harmonic frequencies and predictable loads. |
| Grid Compliance & Efficiency Meeting standards and optimizing energy usage |
Excellent Improves efficiency, reduces losses, and supports grid code compliance. |
Excellent Enhances power quality and compliance, especially effective for harmonics. |
Limited Limited compliance support; mainly for harmonic attenuation. |
Legend:
POWER QUALITY PROJECT
EXPERIENCE
Renewable Energy
.png)
Battery Energy Storage System (BESS)
Power Grid
Mining Industry
Infrastructure
Manufacturing
Data Centers
Steel & Cement Plants
Public Utilities
Port & Airports
Food Processing
Oil & Gas
Optimize Your Power Quality Today
Contact our power quality experts to discuss your specific challenges and discover tailored solutions for improved reliability, efficiency, and compliance.
