ENABLING POWER QUALITY AND GRID COMPLIANCE
THROUGH HARMONIC ANALYSIS ENGINEERING
A Harmonic Study, also known as Power System Harmonic Analysis, is a frequency-domain simulation of your electrical network that evaluates harmonic voltage and current distortion under defined operating conditions. It quantifies Total Harmonic Distortion (THD), individual harmonic orders, resonance behaviour, and system impedance characteristics at the Point of Common Coupling (PCC), providing a complete understanding of how non-linear loads will impact the network.
For any project involving inverter-based generation, power electronic equipment, or significant non-linear loads, a Harmonic Study is a critical technical requirement. Without it, harmonic distortion leads to overheating of transformers and cables, capacitor bank failures, protection maloperation, and grid code non-compliance—resulting in costly redesigns and delays in utility approval.
Purpose of Harmonic Study
Harmonic Compliance at PCC
Grid operators define strict harmonic emission limits at the Point of Common Coupling. A Harmonic Study verifies compliance with IEEE 519 and IEC 61000 before submission for interconnection approval.
Resonance Identification
Electrical networks exhibit frequency-dependent impedance. A Harmonic Study identifies parallel and series resonance conditions that can amplify harmonic distortion and damage equipment.
Equipment Protection and Thermal Loading
Harmonic currents increase RMS loading in transformers, cables, and switchgear. The study evaluates overheating risks and ensures equipment is correctly rated for harmonic conditions.
Capacitor Bank and PFC Interaction
Capacitor banks can interact with network inductance and create resonance at specific harmonic frequencies. The study evaluates detuning requirements and safe operating conditions.
Harmonic Filter Design
Where harmonic limits are exceeded, the study defines the optimal solution including passive filters, active filters, or hybrid systems, ensuring compliance without overdesign.
Grid Code Compliance
Utility interconnection approvals increasingly require a Harmonic Study as a mandatory deliverable. ENERZIX prepares studies aligned with utility-specific harmonic limits and submission requirements.
Scope of Harmonic Study Services
ENERZIX's Harmonic Studies are detailed system-level analyses, not simplified calculations. Our standard scope includes:
Background Harmonic Assessment
Existing harmonic voltage levels at PCC
Harmonic Source Modelling
Characterisation of all non-linear loads including inverters, VSDs, UPS systems, and converters
Frequency Scan Analysis
Network impedance versus frequency to identify resonance points
Harmonic Load Flow Analysis
Propagation of harmonic currents and voltages across the full network model
THD and Individual Harmonic Assessment
Compliance verification against IEEE 519 / IEC 61000 limits
Capacitor Bank Interaction Study
Assessment of resonance and detuning requirements
Harmonic Filter Design
Sizing and tuning of passive, active, or hybrid harmonic filters
Post-Mitigation Verification
Validation of compliance after filter implementation
Study Deliverables
Every ENERZIX Harmonic Study is delivered as a formal technical report suitable for submission to utilities, EPC contractors, consultants, or lenders. The report includes:
- Harmonic source inventory and modelling assumptions
- Frequency-dependent impedance plots (frequency scan results)
- Resonance identification and risk assessment
- Bus-wise harmonic voltage distortion results
- THD and individual harmonic compliance tables
- Harmonic current contribution analysis by source
- Harmonic filter design and specification
- Post-filter compliance verification results
- Engineering conclusions structured for regulatory submission
Simulation Platforms
All ENERZIX Harmonic Studies are performed using industry-accepted simulation tools:
ETAP
Primary platform for harmonic load flow, frequency scan, and filter design
DIgSILENT PowerFactory
Advanced modelling for utility-scale and renewable integration studies
PSCAD
Detailed inverter and high-frequency harmonic modelling
SKM PowerTools
Industrial harmonic analysis and filter sizing
MATLAB / Simulink
Custom modelling and active filter control simulations
When Do You Need a Harmonic Study?

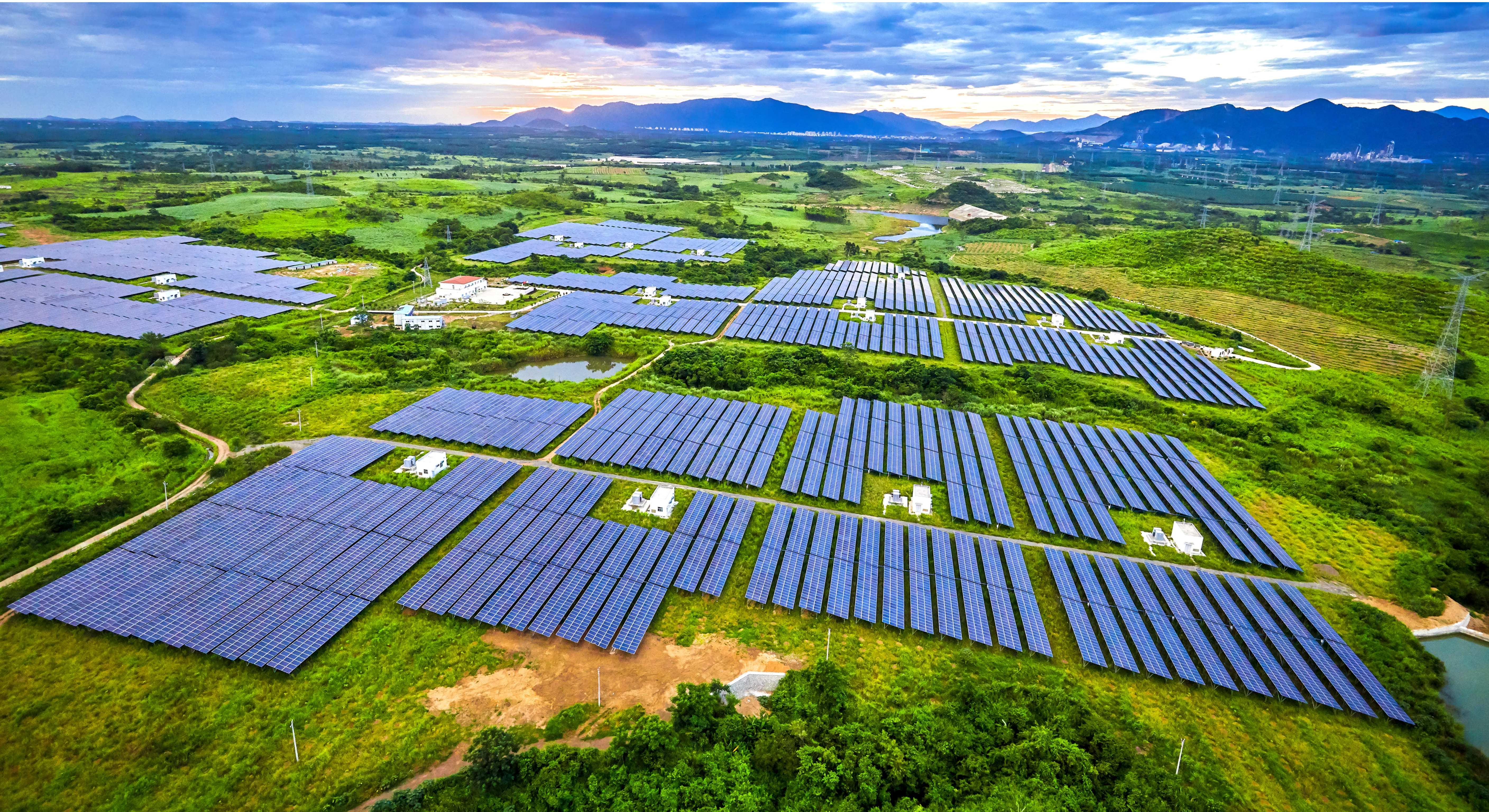

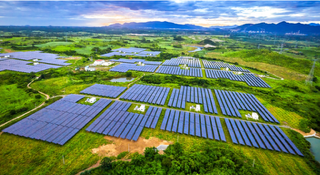

Solar PV Plant
Inverter harmonic emissions and grid compliance assessment

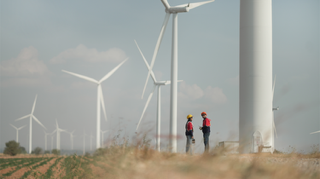

Wind Farm
Converter harmonics and inter-harmonic analysis
BESS Project
Charge/discharge mode harmonic impact and compliance verification
Industrial Facility
VSDs, rectifiers, and arc furnaces generating harmonic distortion
Data Centre
UPS systems and switch-mode power supplies creating harmonic currents

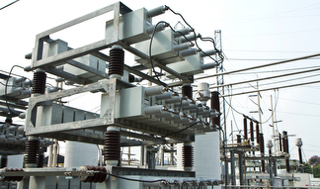

Capacitor Bank Installation
Resonance risk assessment before power correction implementation

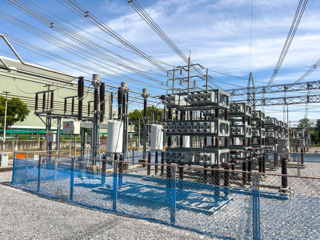

Power Factor Correction Upgrade
System resonance frequency reassessment
Utility Interconnection
Mandatory harmonic compliance study for grid approval
Frequently Asked Questions
Is a Harmonic Study mandatory for grid connection?
In many utility and industrial interconnection projects, yes. Harmonic compliance is increasingly required wherever inverter-based generation, converters, VSDs, UPS systems, or other non-linear loads are introduced into the network.
What data is required to begin?
At minimum: Single Line Diagram, transformer and cable data, non-linear load details, inverter or converter technical data, capacitor bank details, PCC information, and applicable utility harmonic limits.
What standards are typically checked in a Harmonic Study?
Harmonic studies are commonly assessed against IEEE 519 and IEC 61000 requirements, along with any utility-specific emission limits or project-specific interconnection criteria.
Can the study include mitigation recommendations?
Yes. Where limits are exceeded, the study can define passive, active, or hybrid harmonic filter solutions, capacitor detuning requirements, and post-mitigation verification to confirm compliance.
Partner with Us
Whether you are developing a renewable energy plant, integrating BESS, expanding an industrial facility, or seeking utility interconnection approval, ENERZIX provides engineering-grade Harmonic Studies that support power quality compliance, equipment protection, and technical credibility accepted by utilities and project stakeholders.
