Saudi Arabia's rapid expansion of renewable generation is making Battery Energy Storage Systems (BESS) an increasingly important part of the Kingdom's future power infrastructure. As the market moves toward MW-to-GW-scale storage and increasingly large multi-site portfolios, the engineering questions facing developers, EPCs, OEMs, and their consultants are evolving from "does this technology work?" to "how do we standardize, de-risk, and deliver these systems safely, efficiently, and at bankable quality?"
Grid-connection requirements, procurement structures, environmental conditions, equipment interfaces, and long-term performance obligations all influence these decisions well before a battery container reaches site.
This article outlines the key engineering considerations that should be addressed when developing and delivering utility-scale BESS projects in Saudi Arabia.
01.Plant Layout Is a Grid-Interface Problem, Not Just a Civil One

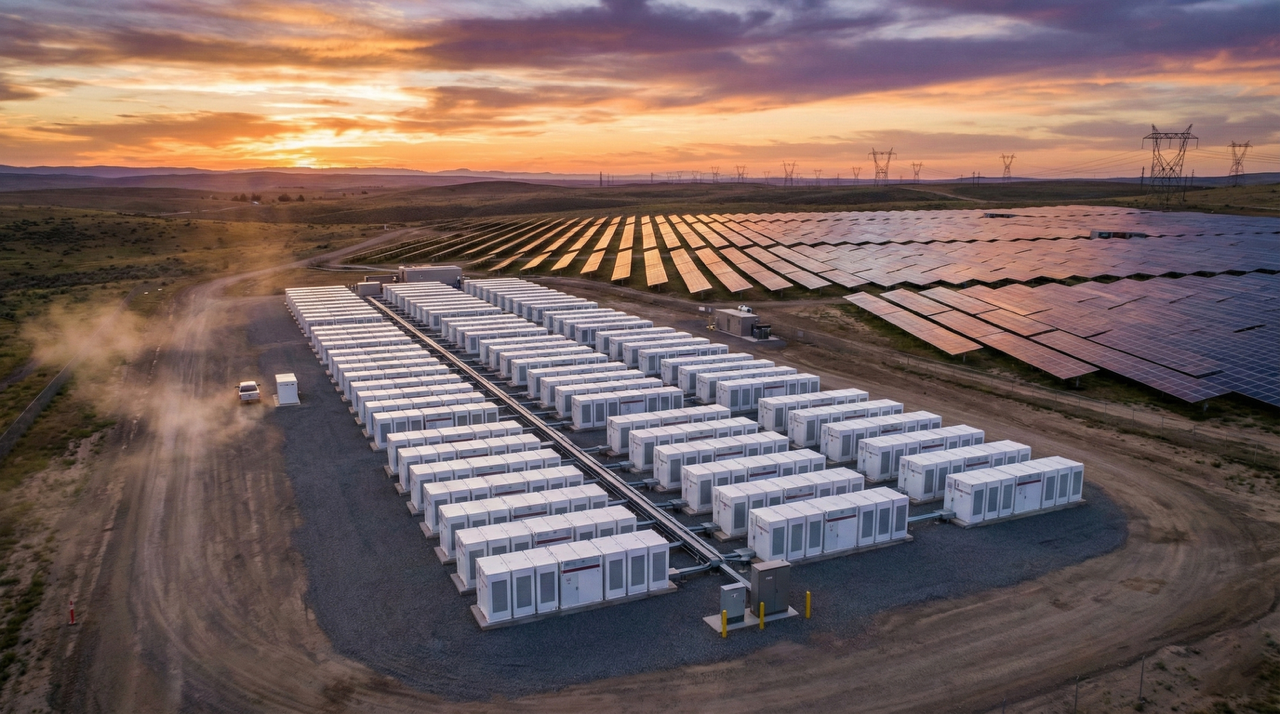

At utility scale, a BESS site can comprise large numbers of containerized battery units, multiple medium-voltage skids, power transformers, MV switchgear, auxiliary systems, and control infrastructure, all of which ultimately have to connect through a coordinated electrical architecture to the transmission or distribution network.
Layout decisions - container spacing, MV cable routing, transformer locations, access roads, fire separation, and equipment grouping - are often treated primarily as a civil or site-layout exercise. In reality, they are closely linked to the electrical design.
Cable route lengths and impedances influence voltage drop and losses. Electrical topology affects protection zones and coordination. The physical arrangement also influences constructability, maintainability, fire separation, and the efficiency of the MV collection system. The physical layout should therefore be developed together with the electrical topology rather than finalized independently.
Validate the physical footprint against the electrical architecture before civil design is frozen.
02.Footprint Geometry Should Be Optimized - Not Assumed
For large BESS projects, footprint geometry can have a significant effect on MV cable lengths, losses, voltage drop, equipment accessibility, fire separation, construction sequencing, and maintainability.
A compact or near-square arrangement with appropriately located MV collection routes can be advantageous in some configurations because it may reduce average cable lengths and simplify the physical organization of equipment. However, there is no universally optimal geometry. The preferred arrangement depends on the site boundary, point of interconnection, equipment block architecture, fire-safety requirements, terrain, access requirements, electrical topology, and construction strategy.
The important engineering exercise is therefore not to select a square or linear footprint by default, but to compare alternative layouts against the complete technical and commercial criteria.
Optimize footprint geometry against cable losses, electrical topology, protection, fire separation, constructability, and maintainability before civil design freezes the arrangement.
03.Vendor Technical Data Reconciliation Is Critical to Schedule
Every major BESS OEM can present technical data in a different format, with different assumptions around usable energy, round-trip efficiency, augmentation strategy, auxiliary consumption, operating temperature, degradation, and performance guarantees.
During multi-vendor bid processes, reconciling this information onto a common technical basis can become a significant engineering task. Unless the assumptions are normalized, apparently comparable OEM proposals may actually be based on different operating conditions and performance boundaries.
A structured reconciliation process should therefore establish a common basis for equipment schedules, power-flow calculations, BOM development, cable sizing, auxiliary loads, energy calculations, and lifecycle comparisons before vendor proposals are evaluated in detail.
Build the technical reconciliation framework before vendor data arrives, rather than adapting the evaluation process to each vendor's format.
04.Augmentation Strategy Assumptions Rarely Line Up Across OEMs
Closely linked to technical reconciliation is the augmentation strategy. Different OEMs may assume different degradation profiles, operating windows, augmentation triggers, augmentation quantities, and schedules.
If these assumptions are not normalized, lifecycle cost comparisons can become misleading. A lower initial equipment price may be offset by higher augmentation requirements later in the project. The technical and commercial evaluation should therefore model the complete lifecycle requirement rather than comparing only the initial installed MWh.
Normalize degradation and augmentation assumptions explicitly - a lower headline price can conceal higher lifecycle costs.
05.The Division of Responsibility (DOR) Matrix Is a Key Risk-Management Tool
On a project involving a developer, EPC, BESS integrator, PCS supplier, transformer supplier, and other specialist vendors, ambiguity in scope boundaries can become a major source of commercial and technical disputes.
A clearly developed Division of Responsibility (DOR) matrix should define interfaces across the complete project, including equipment supply, engineering inputs, protection settings, communications, cable terminations, control interfaces, testing, commissioning, documentation, and grid-boundary responsibilities. The DOR is not simply contractual paperwork. It is an engineering tool for ensuring that every interface has an identified owner.
Establish DOR clarity between the developer, EPC, integrator, OEMs, and other suppliers before contracts are signed, not after interfaces become problems.
06.Interface Testing Ownership Is a Critical Contractual Boundary
Of all the boundaries a DOR matrix has to define, interface testing at the grid boundary is particularly important. When a fault or unexpected response occurs during commissioning at the interface between BESS integrator, EPC, protection, control, and grid-connection scopes, an undefined responsibility can quickly turn a technical issue into a commercial dispute.
The contract should therefore identify responsibility for test procedures, test equipment, simulation inputs, witness requirements, fault scenarios, data capture, corrective actions, and final acceptance at each major interface.
Assign interface-testing responsibility explicitly - particularly at the BESS-to-grid boundary.
07.Independent Performance Assessment Is Increasingly Important
As utility-scale BESS financing matures, independent technical assessment can play an increasingly important role in validating the assumptions that underpin project economics.
Depending on the financing and contractual structure, an Independent Engineer or other qualified technical advisor may review degradation assumptions, augmentation strategy, round-trip efficiency, availability, performance guarantees, operating conditions, and long-term capacity obligations. The objective is not simply to repeat the OEM's own performance claims. It is to determine whether the assumptions used in the technical and financial models are supported by appropriate evidence and contractual protection.
Treat independent technical assessment as a defined project scope, with clear inputs and deliverables, rather than an afterthought.
08.Running Independent Assessment in Parallel Protects the Schedule
Independent technical assessment is most effective when it is integrated into the project development schedule rather than introduced immediately before financial close.
Running the assessment in parallel with detailed engineering allows technical assumptions, equipment selections, degradation models, guarantees, and interface requirements to be challenged while changes can still be incorporated without major cost or schedule impact. This is particularly valuable for large portfolio programs, where a design issue identified late on one project can potentially affect standardized engineering across multiple sites.
Sequence independent technical assessment alongside detailed engineering and procurement activities, not after the major design decisions have already been locked.
09.Back-to-Back Contract Chains Need Engineering Input, Not Just Legal Review
On multi-tier delivery structures involving the developer, EPC, BESS integrator, OEMs, and specialist suppliers, contractual milestones are sometimes structured around commercial convenience rather than the actual engineering and procurement sequence.
Engineering review should therefore extend beyond technical specifications to the relationship between project schedules, technical interfaces, responsibilities, approvals, factory testing, delivery milestones, commissioning, performance testing, and final acceptance. A milestone that appears commercially logical may not align with the technical sequence required to achieve it.
Engineering should review the milestone and responsibility chain alongside legal and commercial teams - commercial sequencing and technical sequencing do not always align.
10.Sequencing Protection Studies Ahead of Procurement Avoids Rework
Protection studies, equipment specifications, control requirements, and grid-interface criteria should be established early enough to influence equipment selection and detailed design.
For BESS projects, this includes understanding the PCS fault-current contribution and control characteristics, protection philosophy, CT/VT requirements, relay functions, protection zones, transformer characteristics, MV topology, and grid-interface requirements. Defining these requirements before procurement helps reduce the risk of equipment selections that later require redesign, additional studies, or interface modifications.
Establish critical protection and grid-interface requirements early enough to influence procurement, not during the final stages of detailed design.
Engineering the System, Not the Components
The technology risk associated with utility-scale BESS is better understood today than it was during the early development of the sector. However, successful delivery of large-scale storage programs depends on much more than selecting proven battery technology.
What separates a well-coordinated BESS development from a delayed or commercially difficult one is often the engineering discipline applied at the interfaces: layout decisions made early enough to influence the electrical architecture, vendor data reconciled before it affects bid evaluation, degradation and augmentation assumptions normalized across suppliers, protection requirements established before procurement, and DOR clarity established before disputes arise.
For Saudi Arabia's next wave of utility-scale storage, this systems-level approach becomes increasingly important as projects grow in size, portfolios become more standardized, and the technical requirements for grid integration and long-term performance become more demanding.
ENERZIX supports utility-scale BESS engineering across the project lifecycle, working with developers, EPCs, and OEMs on plant layout optimization, multi-vendor technical reconciliation, degradation and augmentation assessment, DOR development, electrical interfaces, protection engineering, and BOM and cable-route engineering for large-scale storage systems.
The same engineering discipline can be applied across the wider GCC and MENA region, where grid requirements, environmental conditions, procurement structures, and project interfaces all influence how utility-scale BESS assets must be engineered and delivered.
Engineering for Clarity™.
Dr. Aditya Narain
Ph.D. in Electrical Engineering, IEEE PES Member - 20+ years of experience in the power sector across the Middle East, spanning power transmission, grid infrastructure and renewable energy projects.
